Q43-2000 Scrap Crocodile Shear for Fast Steel Offcut Cutting

Q43-2000 Scrap Crocodile Shear for Fast Steel Offcut Cutting

1. Product Description

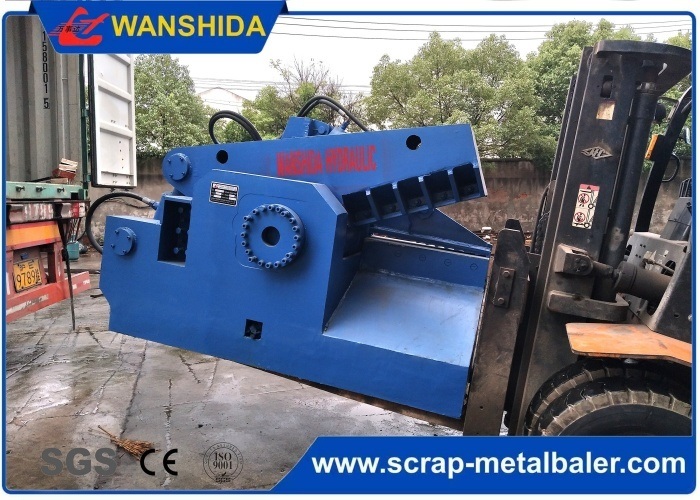

The Q43-2000 scrap crocodile shear is designed for fast steel offcut cutting and repeated metal size reduction in scrap yards, fabrication workshops, and recycling stations. This model is suitable for users who need a compact hydraulic cutting machine for short and repeated cutting cycles rather than a large continuous-feed shear system.

In practical operations, steel offcuts and short ferrous scrap pieces often need to be reduced before sorting, storage, loading, or resale. A crocodile shear is a practical solution for this type of work because it offers direct blade cutting, compact structure, and efficient repeat-cycle performance. The attached technical sheet shows that the Q43-2000 is equipped with 2000 kN largest shear force, 800 mm shear knife length, and 8–12 cuts per minute, making it suitable for practical daily cutting work.

The machine uses 21 MPa hydraulic system pressure, 210 mm cut cylinder stroke, 60 mm hold cylinder stroke, and 80 kN largest holding force, which support stable cutting and material positioning. The hydraulic system is powered by one 22 kW motor, model Y200L2-6, with 1460 rpm rated speed, and a 160YCY14-1B hydraulic pump with 160 ml/r nominal discharge and 31.5 MPa nominal pressure.

2. Product Positioning

The Q43-2000 is best positioned as a scrap crocodile shear for fast steel offcut cutting. It is suitable for:

1. Steel offcut cutting
2. Scrap metal size reduction
3. Workshop-side hydraulic cutting
4. Recycling station material preparation
5. Repeated short-cycle cutting work

This page is more suitable as a compact fast-cutting shear page than as a general alligator shear overview page.

3. Suitable Materials

This model is suitable for cutting:

1. Steel offcuts
2. Scrap steel pieces
3. Light-to-medium ferrous scrap
4. Short bar and section offcuts
5. Metal pieces requiring size reduction before handling

The attached file identifies the machine as Q43-2000 Metal Shear, and the technical layout supports positioning it as a compact hydraulic crocodile shear for repeated cutting work.

4. Recommended Application Scenarios

4.1 Workshop Steel Offcut Cutting

Suitable for fabrication workshops that need repeated cutting of steel offcuts into shorter handling lengths.

4.2 Scrap Yard Small-Batch Cutting

Suitable for scrap yards processing short and irregular steel pieces without needing a large chamber shear system.

4.3 Recycling Station Preparation

Suitable for recycling stations that need to reduce metal size before sorting, loading, or resale.

4.4 Repeated Fast Cutting Work

With 8–12 cuts per minute, this model is suitable for repeated fast cutting applications where stable cycle efficiency matters.

5. Technical Specification Table

6. Core Product Advantages

6.1 Fast Repeat-Cycle Cutting

The listed 8–12 cuts/min makes this model suitable for repeated daily cutting work.

6.2 800 mm Blade for Practical Offcut Cutting

The 800 mm shear knife length provides practical blade coverage for short steel offcuts and scrap pieces.

6.3 Stable Material Holding

The machine provides 80 kN holding force with 60 mm hold cylinder stroke, helping improve material control during cutting.

6.4 Compact Hydraulic Cutting Structure

Compared with larger chamber-fed systems, this model is more suitable for compact hydraulic cutting applications with repeated manual or batch feeding.

6.5 Practical Motor and Pump Matching

The technical sheet shows a 22 kW motor and 160YCY14-1B hydraulic pump, supporting the published cutting and hydraulic performance.

7. Working Process

7.1 Material Feeding

Steel offcuts or scrap metal pieces are fed into the cutting area.

7.2 Material Holding

The hold cylinder stabilizes the material before cutting.

7.3 Hydraulic Shearing

The cut cylinder drives the blade through 210 mm stroke to deliver the published 2000 kN shear force.

7.4 Output Collection

The cut material is collected for storage, transfer, or downstream recycling.

8. RFQ

8.1 What information should buyers provide before quotation?

1. What type of steel offcut or scrap metal do you mainly cut?
2. What is the maximum material size or section size?
3. How many cuts per day or per shift do you expect?
4. Will the machine be used in a workshop, scrap yard, or recycling station?
5. What power supply standard do you use locally?

8.2 Why is this information important?

1. It helps confirm whether the Q43-2000 suits your cutting material.
2. It helps determine whether the 800 mm blade fits your cutting requirement.
3. It improves quotation accuracy and model recommendation.

9. FAQ

9.1 What is the shear force of this scrap crocodile shear?

The attached technical sheet lists 2000 kN largest shear force.

9.2 What is the blade length?

The listed shear knife length is 800 mm.

9.3 How fast can this machine cut?

The sheet lists 8–12 times/min, which makes it suitable for repeated fast cutting work.

9.4 What hydraulic pressure does it use?

The hydraulic system pressure is 21 MPa, and the hydraulic pump nominal pressure is 31.5 MPa.

9.5 What motor power does this machine use?

The machine uses one 22 kW motor, model Y200L2-6, with 1460 rpm rated speed.

10. After-Sales Service

Jiangsu Wanshida Hydraulic Machinery Co., Ltd. can provide support for equipment selection, technical confirmation, production follow-up, testing before delivery, and installation guidance. Before final confirmation, buyers should provide material type, maximum size, and expected cutting conditions so the recommended crocodile shear configuration matches actual use.

11. Call to Action

If you are looking for a scrap crocodile shear for fast steel offcut cutting, send us your material type, maximum size, and expected cutting requirement. We will recommend a suitable hydraulic cutting solution based on your actual application.
