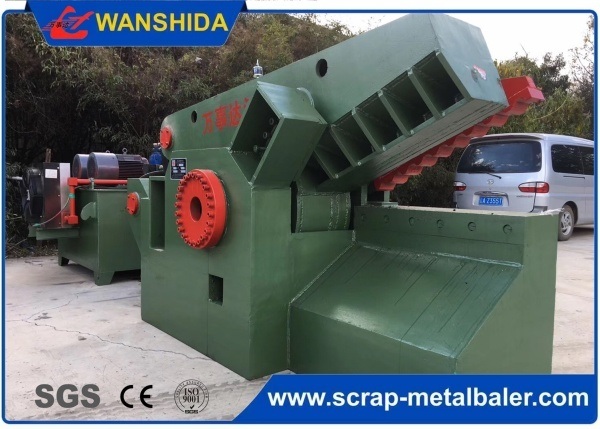

Q43-2000 Hydraulic Crocodile Shear for Repeated Metal Cutting Operations

Q43-2000 Hydraulic Crocodile Shear for Repeated Metal Cutting Operations

1. Product Description

The Q43-2000 hydraulic crocodile shear is designed for repeated metal cutting operations in scrap yards, recycling stations, and workshop-side processing areas. It is suitable for users who need a compact hydraulic cutting machine for short, repeated cutting cycles rather than a large continuous-feed shear system. Based on the attached technical sheet, this model is equipped with 2000 kN largest shear force, 800 mm shear knife length, and 8–12 times per minute, which makes it suitable for practical daily cutting work.

In many metal processing and recycling environments, irregular steel pieces, offcuts, and short ferrous materials need to be reduced before storage, transfer, loading, or resale. A hydraulic crocodile shear is a practical solution for this kind of work because it combines direct blade cutting, compact structure, and efficient repeat-cycle performance. Compared with larger gantry or guillotine shear systems, this type of machine is more suitable where buyers need a simpler and more compact cutting solution.

The attached technical sheet shows that the Q43-2000 uses 21 MPa hydraulic system pressure, 210 mm cut cylinder stroke, 60 mm hold cylinder stroke, and 80 kN largest holding force. These parameters help support stable material control and repeated cutting action. The machine also uses one 22 kW motor, type Y200L2-6, with 1460 rpm rated speed, together with a 160YCY14-1B hydraulic pump rated at 160 ml/r nominal discharge and 31.5 MPa nominal pressure.

2. Product Positioning

The Q43-2000 is best positioned as a hydraulic crocodile shear for repeated metal cutting operations. It is suitable for:

1. Repeated steel and metal cutting
2. Workshop offcut reduction
3. Recycling station material preparation
4. Scrap yard daily cutting work
5. Compact hydraulic shear applications

This model is more suitable for buyers looking for a compact and repeat-cycle cutting machine than for those looking for a large heavy-duty continuous-feed shear line.

3. Suitable Materials

This model is generally suitable for cutting:

1. Steel offcuts
2. Scrap steel pieces
3. Light-to-medium ferrous scrap
4. Short bar and section offcuts
5. Recyclable metal pieces requiring size reduction

The attached file identifies the machine as Q43-2000 Metal Shear, and the published parameters support positioning it as a compact crocodile shear for repeated cutting work.

4. Recommended Application Scenarios

4.1 Scrap Yard Daily Cutting

Suitable for scrap yards that need repeated cutting of metal scrap into shorter sections for easier storage and transfer.

4.2 Workshop Offcut Handling

Suitable for fabrication and processing workshops that need repeated cutting of offcuts into more manageable sizes.

4.3 Recycling Station Preparation

Suitable for recycling stations that need to reduce metal size before sorting, loading, or resale.

4.4 Repeated Short-Cycle Operations

With 8–12 cuts per minute, this model is suitable for repeated cutting work where stable cycle efficiency matters.

5. Technical Specification Table

以上参数全部来自附件 technical sheet.

6. Core Product Advantages

6.1 Strong Shearing Force for Daily Cutting Work

The attached technical sheet lists 2000 kN largest shear force, providing practical cutting capacity for repeated metal cutting operations.

6.2 800 mm Blade for Practical Material Coverage

The 800 mm shear knife length provides useful blade coverage for short scrap pieces and workshop offcuts.

6.3 High Frequency for Repeated Cutting

The published 8–12 times/min makes this model suitable for repeated short-cycle operations in daily use.

6.4 Stable Material Holding Performance

The machine provides 80 kN largest holding force with 60 mm hold cylinder stroke, helping improve material control during shearing.

6.5 Practical Hydraulic and Motor Matching

The machine uses a 22 kW motor and 160YCY14-1B hydraulic pump, matching the published hydraulic pressure and shearing configuration.

7. Working Process

7.1 Material Feeding

Steel offcuts or recyclable metal pieces are fed into the cutting area.

7.2 Material Holding

The hold cylinder stabilizes the material before cutting. The technical sheet lists 80 kN largest holding force and 60 mm hold cylinder stroke.

7.3 Hydraulic Shearing

The cut cylinder drives the blade through 210 mm stroke to deliver the published 2000 kN shear force.

7.4 Output Collection

The cut material is collected for storage, transfer, or downstream recycling.

8. RFQ

8.1 What information should buyers provide before quotation?

1. What type of metal do you mainly cut?
2. What is the maximum material size or section size?
3. How many cuts per day or per shift do you expect?
4. Will the machine be used in a workshop, scrap yard, or recycling station?
5. What power supply standard do you use locally?

8.2 Why is this information important?

1. It helps confirm whether the Q43-2000 suits your cutting material.
2. It helps determine whether the 800 mm blade fits your cutting requirement.
3. It improves quotation accuracy and model recommendation.

9. FAQ

9.1 What is the shear force of this hydraulic crocodile shear?

The attached technical sheet lists 2000 kN largest shear force.

9.2 What is the blade length?

The listed shear knife length is 800 mm.

9.3 How fast can this machine cut?

The sheet lists 8–12 times/min, which makes it suitable for repeated cutting operations.

9.4 What hydraulic pressure does it use?

The hydraulic system pressure is 21 MPa, and the hydraulic pump nominal pressure is 31.5 MPa.

9.5 What motor power does this machine use?

The machine uses one 22 kW motor, model Y200L2-6, with 1460 rpm rated speed.

10. After-Sales Service

Jiangsu Wanshida Hydraulic Machinery Co., Ltd. can provide support for equipment selection, technical confirmation, production follow-up, testing before delivery, and installation guidance. Before final confirmation, buyers should provide material type, maximum size, and expected cutting conditions so the recommended crocodile shear configuration matches actual use.

11. Call to Action

If you are looking for a hydraulic crocodile shear for repeated metal cutting operations, send us your material type, maximum size, and expected cutting requirement. We will recommend a suitable hydraulic cutting solution based on your actual application.
